適用物料：砂石骨料、建筑垃圾再生骨料等
應用領域：砂石料場、礦山開采、煤礦開采、混凝土攪拌站、干粉砂漿、電廠脫硫、石英砂等
YAX稀油潤滑振動篩采用特殊措施保護軸承舒適的工作，振動器噪聲低于75分貝，軸承溫度小于55度。激振器主軸采用優質合金鋼40Cr調質處理，經數控車床，粗車和精車并精外圓磨床制軸承臺階處加工而成。減震彈簧采用鋼絲彈簧減震效果佳，同時帶有隔音降噪聚氨酯墊片，整體轉動采用變速傳動，使振動篩性能更加穩定，同時采用倒速結構能降低電機功率，節能環保。
振動篩側幫采用鍋爐板Q245R材質，韌性和沖擊性能均較佳，整體側幫采用激光割整體一次割制而成，保證了數據安裝的準確性。
軸承室強度高，抗震性能更高，采用數控加工中心精鏜孔，保證安裝尺寸的可靠性。

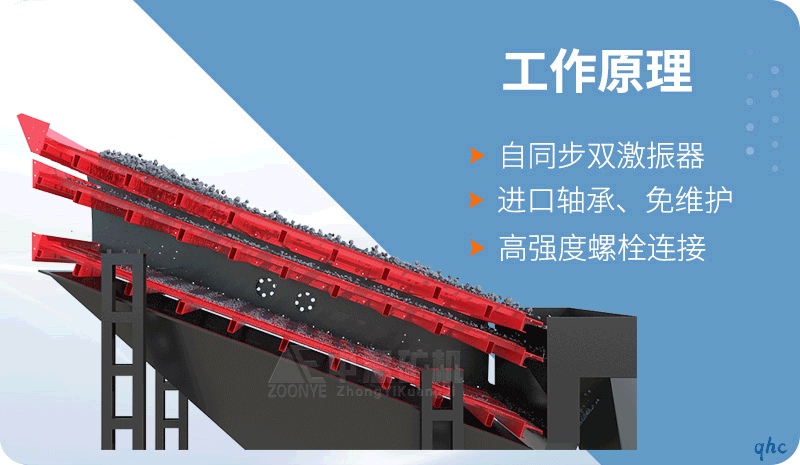

利用振子激振所產生的往復振動，將大小不同的物料群通過篩面進行篩分。新型靜音振動篩，稀油潤滑免維護篩分，大激振力，維修方便快捷，柔性連接，運行平穩，篩分效率高，處理量大，壽命長，電耗低，噪音小。

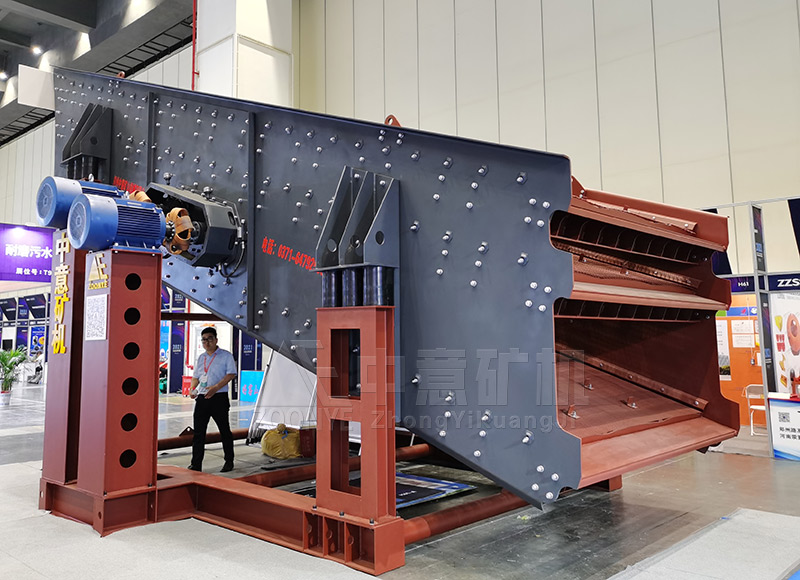

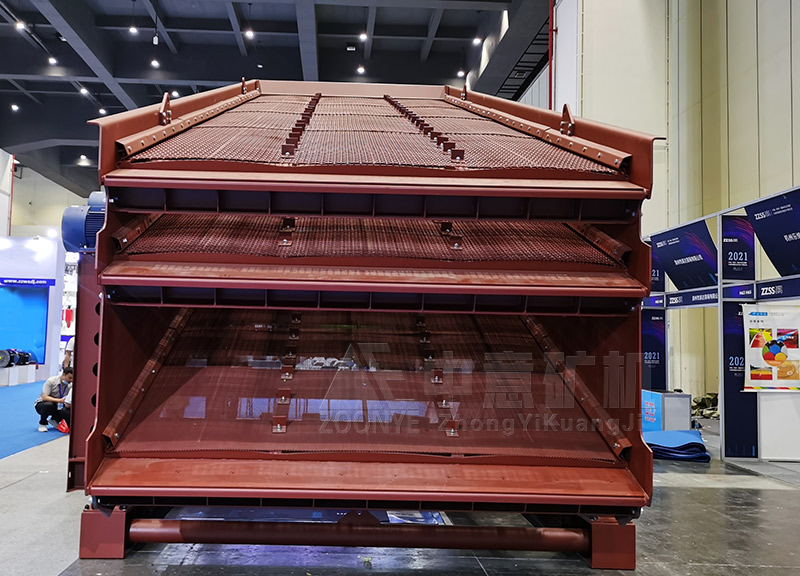

稀油潤滑振動篩

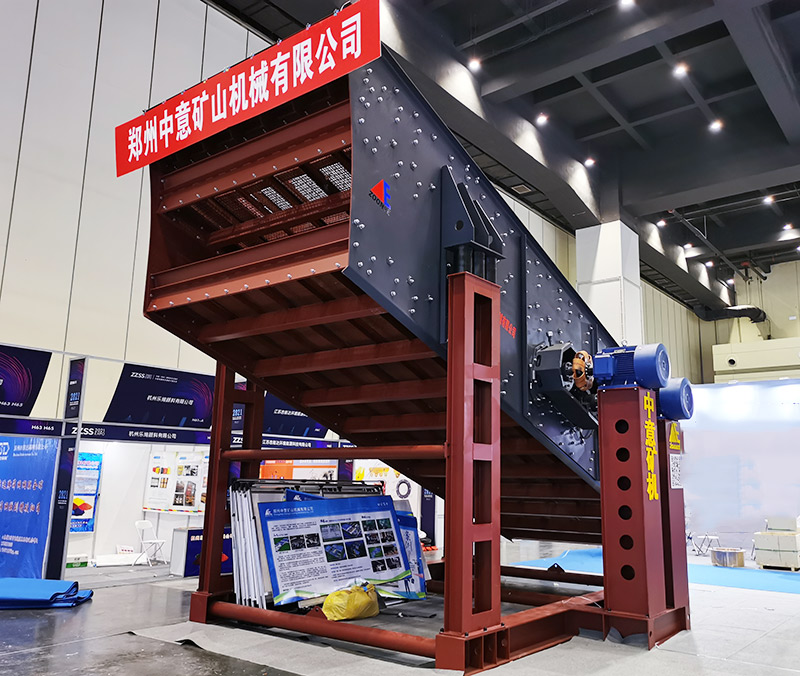

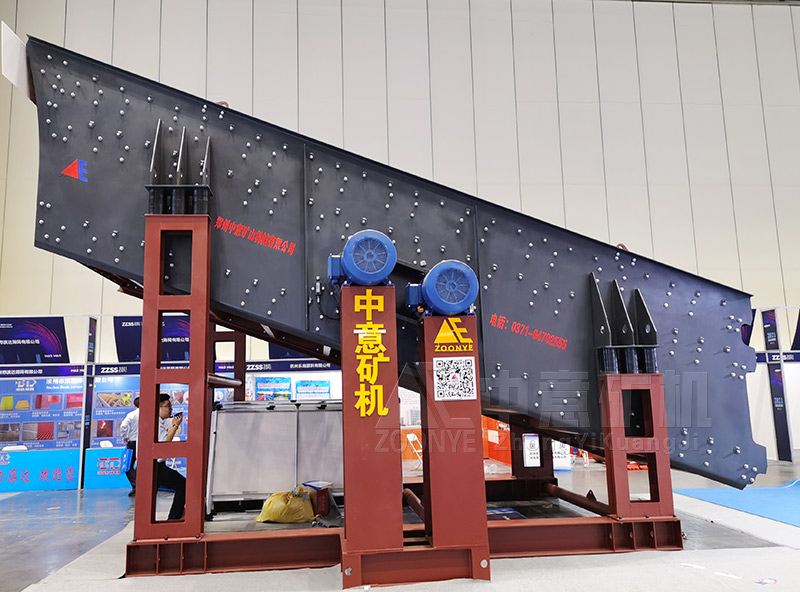

大型礦用振動篩
砂石料振動篩
稀油潤滑振動篩報價
稀油潤滑振動篩廠家
| 型號 | 篩網層數 | 篩網傾角(o ) | 篩孔尺寸 | 振動頻率(r/min) | 雙振幅 | 處理能力(m3/h) | 電機功率 | 進料尺寸 | 篩面規格 |
| 2YKX1548 | 2 | 15 | 4-50 | 800-970 | 9.5-10.5 | 22-150 | 11 | 200 | 1500x4800 |
| 3YKX1548 | 3 | 15 | 4-50 | 800-970 | 22-150 | 15 | 200 | 1500x4800 | |
| 4YKX1548 | 4 | 18.5 | 4-50 | 800-970 | 22-155 | 15 | 200 | 1500x4800 | |
| 2YKX1860 | 2 | 18.5 | 4-80 | 800-970 | 32-312 | 18.5 | 200 | 1800x6000 | |
| 3YKX1860 | 3 | 22 | 4-80 | 800-970 | 32-312 | 22 | 200 | 1800x6000 | |
| 4YKX1860 | 4 | 22 | 4-80 | 800-970 | 32-336 | 30 | 200 | 1800x6000 | |
| 2YKX2160 | 2 | 20 | 4-100 | 970 | 50-475 | 22 | 400 | 2100x2600 | |
| 3YKX2160 | 3 | 20 | 4-100 | 970 | 50-475 | 30 | 400 | 2100x2600 | |
| 4YKX2160 | 4 | 20 | 4-100 | 970 | 50-497 | 30 | 400 | 2100x2600 | |
| 2YKX2170 | 2 | 20 | 4-100 | 970 | 60-500 | 22 | 400 | 2200x2600 | |
| 3YKX2170 | 3 | 20 | 4-100 | 970 | 60-500 | 30 | 400 | 2200x2600 | |
| 4YKX2170 | 4 | 20 | 4-100 | 970 | 60-500 | 30 | 400 | 2200x2600 | |
| 2YKX2460 | 2 | 20 | 4-100 | 970 | 65-550 | 37 | 400 | 2400x6000 | |
| 3YKX2460 | 3 | 20 | 4-100 | 970 | 70-620 | 37 | 400 | 2400x6000 | |
| 4YKX2460 | 4 | 20 | 4-100 | 970 | 80-680 | 37 | 400 | 2400x6000 | |
| 2YKX2470 | 2 | 20 | 4-100 | 800 | 80-1250 | 37 | 400 | 2400x7500 | |
| 3YKX2470 | 3 | 20 | 4-100 | 800 | 80-1250 | 37 | 400 | 2400x7500 | |
| 4YKX2470 | 4 | 20 | 4-100 | 800 | 80-1500 | 37 | 400 | 2400x7500 | |
| 2YKX3060 | 2 | 20 | 4-100 | 800 | 80-1500 | 2x22 | 400 | 3000x6000 | |
| 3YKX3060 | 3 | 20 | 4-100 | 800 | 80-1500 | 2x22 | 400 | 3000x6000 | |
| 4YKX3060 | 4 | 20 | 4-100 | 800 | 80-1500 | 2x30 | 400 | 3000x6000 | |
| 2YKX3080 | 2 | 20 | 4-100 | 800 | 70-1830 | 2x30 | 400 | 3000x7500 | |
| 3YKX3080 | 3 | 20 | 4-100 | 800 | 70-1830 | 2x37 | 400 | 3000x7500 | |
| 4YKX3080 | 4 | 20 | 4-100 | 800 | 80-1830 | 2x45 | 400 | 3000x7500 | |
| 2YKX3280 | 2 | 20 | 4-100 | 800 | 80-1800 | 2x37 | 400 | 3600x6000 | |
| 3YKX3280 | 3 | 20 | 4-100 | 800 | 80-1800 | 2x45kw | 400 | 3600x6000 | |
| 4YKX3280 | 4 | 20 | 4-100 | 800 | 80-1800 | 2x45kw | 400 | 3600x6000 | |
| 2YKX3680 | 2 | 20 | 4-100 | 800 | 80-1800 | 2x37 | 400 | 3600x6000 | |
| 3YKX3680 | 3 | 20 | 4-100 | 800 | 80-1800 | 2x45 | 400 | 3600x6000 | |
| 2YKX40100 | 2 | 20 | 4-100 | 800 | 100-2000 | 2x75 | 400 | 3600x6000 | |
| 3YKX40100 | 3 | 20 | 4-100 | 800 | 100-2000 | 2x75 | 400 | 3600x6000 |
